Maxhub 4K PTZ Camera – Product Description
The Maxhub 4K PTZ Camera is a professional-grade video conferencing
and live streaming camera designed to deliver 4K Ultra HD resolution
with exceptional clarity and detail. It is ideal for conference rooms, classrooms,
auditoriums, and broadcast environments.

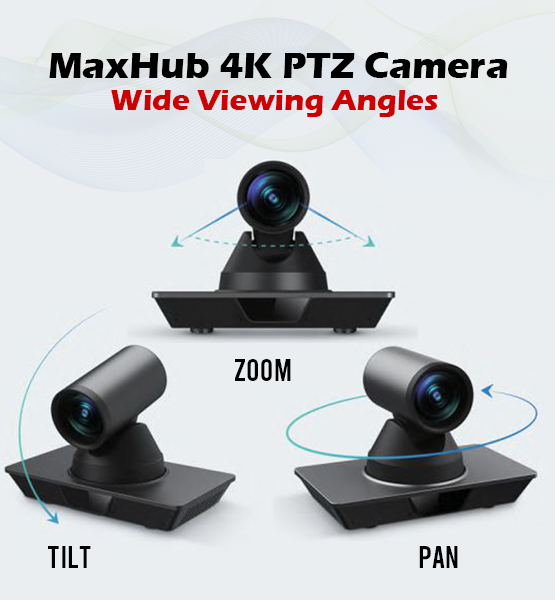

Featuring advanced PTZ (Pan-Tilt-Zoom) functionality, the camera allows
precise remote control of movement and zoom, making it perfect for large spaces where
flexible framing is essential.
The camera includes automatic focus, white balance, and exposure control to ensure
consistently sharp and well-balanced video output. It supports both
USB 3.0 and HDMI connectivity for seamless integration.
With a sleek, modern design and enterprise-level performance, the Maxhub 4K PTZ Camera
is an excellent choice for professional video applications.
Technical Specifications
Technical specifications of Maxhub 4K PTZ Camera model C12HUL
| S.No |
Parameter |
Specification |
| 1 |
Model |
Maxhub – C12HUL |
| 2 |
Type |
4K PTZ Camera |
| 3 |
Resolution |
2160p@60fps, 1080p@60fps, 720p@60fps |
| 4 |
Video Format |
H.264 AVC, H.264 SVC, H.265, MJPEG |
| 5 |
Optical Zoom |
12X (4.4mm–52.8mm, F1.8–F2.6) |
| 6 |
Digital Zoom |
16X |
| 7 |
Minimum Illumination |
0.05 Lux (F1.8, AGC ON) |
| 8 |
White Balance |
Auto / One-click / Manual |
| 9 |
Backlight Compensation |
Supported |
| 10 |
Video Signal-to-Noise |
≥55dB |
| 11 |
Noise Reduction |
2D & 3D Digital Noise Reduction |
| 12 |
Image Sensor |
1/2.5” CMOS, 8.51MP |
| 13 |
Pan Range |
±170° |
| 14 |
Tilt Range |
-30° to +30° |
| 15 |
Horizontal FOV |
71°–8.2° |
| 16 |
Vertical FOV |
42.7°–4.5° |
| 17 |
Interfaces |
HDMI, USB 3.0, LAN, RS232, 3G-SDI, Line In |
| 18 |
OS Support |
Windows, macOS, Linux, Android |
| 19 |
Presets |
255 Presets |
| 20 |
Input Voltage |
DC 12V |
| 21 |
Power Consumption |
12W (Max) |
| 22 |
Operating Temperature |
-10°C to 40°C |
| 23 |
Dimensions |
200 × 176 × 130 mm |
| 24 |
Net Weight |
1.41 kg |
