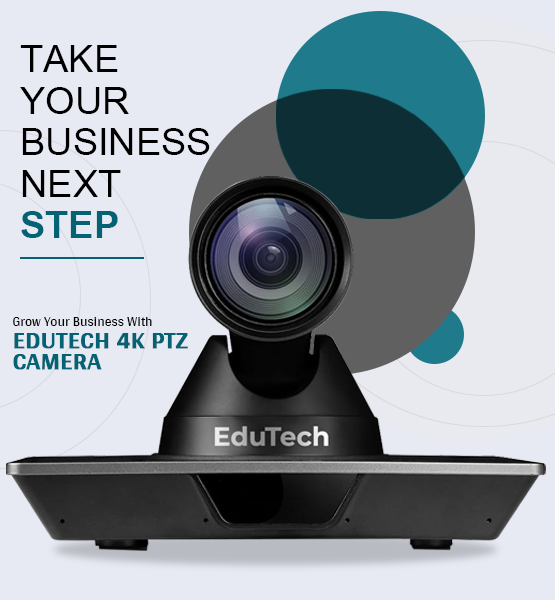

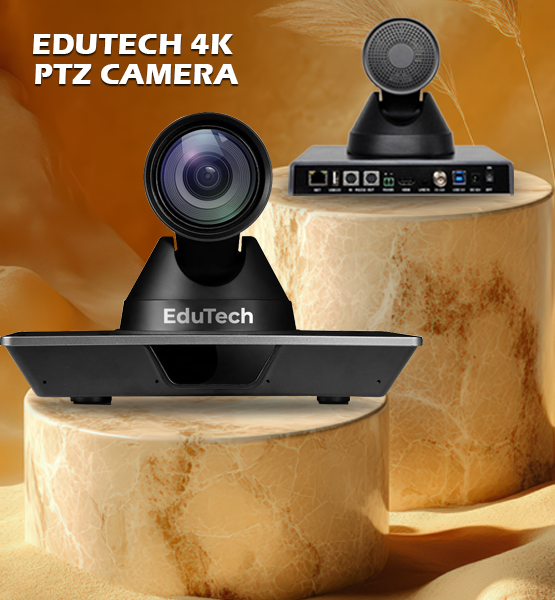

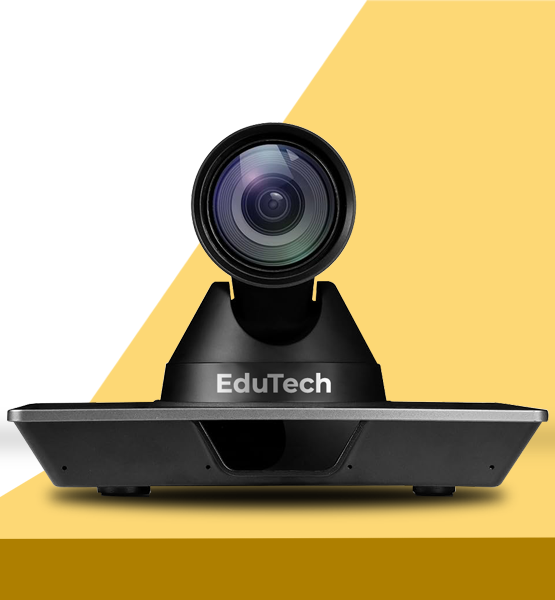

EduTech 4K PTZ Camera – Professional Video Solution
The EduTech 4K PTZ Camera is a high-performance
Ultra HD PTZ camera designed for
online teaching, live streaming, classroom recording,
video conferencing, worship streaming, and corporate meetings.
It delivers stunning 4K UHD video at 60fps with
12X optical zoom, ensuring crystal-clear visuals even in large rooms.
With smooth pan-tilt-zoom movement, intelligent
auto-tracking, and excellent low-light performance,
this camera guarantees professional-quality output for educators,
institutions, and businesses across India.
Key Features of EduTech 4K PTZ Camera
-
Ultra HD 4K Video Output:
Supports 2160p @ 60fps, 1080p & 720p resolutions with superior image clarity.
-
12X Optical + 16X Digital Zoom:
Capture fine details clearly, even from long distances.
-
AI Auto Tracking & Low-Light Performance:
Advanced AI tracking with 2D/3D digital noise reduction for sharp video in dim lighting.
-
Smooth Pan-Tilt Control:
±170° pan and −30° to +30° tilt with up to 255 preset positions.
-
Multiple Connectivity Options:
HDMI, USB 3.0, LAN, RS-232, 3G-SDI with dual streaming support.
-
Wide OS Compatibility:
Works seamlessly with Windows, macOS, Linux, and Android systems.
| S.No |
Parameter |
Specification |
| 1 | Model | EduTech E12X |
| 2 | Camera Type | 4K Ultra HD PTZ Camera |
| 3 | Resolution | 2160p @ 60fps, 1080p @ 60fps, 720p @ 60fps |
| 4 | Video Compression | H.264 AVC, H.264 SVC, H.265, MJPEG |
| 5 | Optical Zoom | 12X (4.4mm – 52.8mm, F1.8 – F2.6) |
| 6 | Digital Zoom | 16X |
| 7 | Minimum Illumination | 0.05 Lux (F1.8, AGC ON) |
| 8 | White Balance | Auto / Manual / One-Click |
| 9 | Backlight Compensation | Supported |
| 10 | Signal-to-Noise Ratio | ≥ 55dB |
| 11 | Noise Reduction | 2D & 3D Digital Noise Reduction |
| 12 | Image Sensor | 1/2.5″ CMOS, 8.51MP |
| 13 | Pan Range | ±170° |
| 14 | Tilt Range | −30° to +30° |
| 15 | Horizontal FOV | 71° – 8.2° |
| 16 | Vertical FOV | 42.7° – 4.5° |
| 17 | Interfaces | HDMI, USB 3.0, LAN (RJ-45), RS-232, 3G-SDI, Line-In |
| 18 | Operating Systems | Windows, macOS, Linux, Android |
| 19 | Preset Positions | 255 |
| 20 | Power Supply | DC 12V |
| 21 | Power Consumption | 12W (Max) |
| 22 | Operating Temperature | −10°C to 40°C |
| 23 | Dimensions (W×H×D) | 200 × 176 × 130 mm |
| 24 | Net Weight | 1.41 kg |
